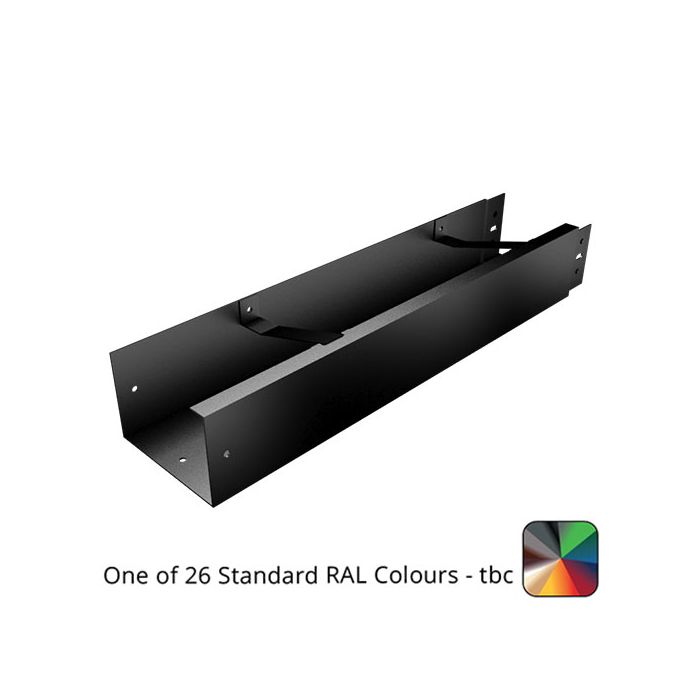

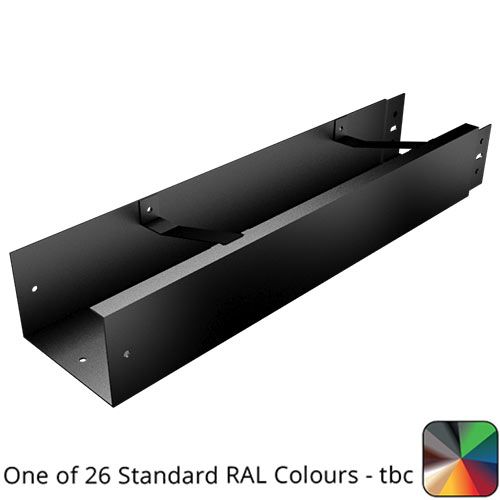

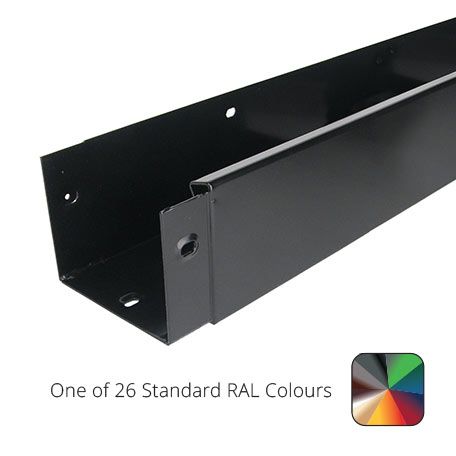

125x100mm Aluminium Joggle Box 3m Gutter Length - One of 26 Standard Matt RAL colours TBC
Save your quote
To get a quote simply 'add to quote' and 'submit' the shopping list to us along with any remarks. We can respond to your comments, and you can view, edit or add back to the basket to purchase your saved quotes at any time by logging into your account.125x100mm Aluminium Joggle Box 3m Gutter Length - One of 26 Standard Matt RAL colours TBC - Supplied with top fixing straps.
Made from high strength aluminium, the joggle box gutters come in various sizes and profiles, with a full range of accessories including angles, outlets, stopends, and fascia brackets. True and facetted radius gutters are also available (get in touch to discuss). For installation, fascia brackets are spaced at a maximum of 750mm, no further than 375mm from a joint, with additional brackets required near joints and fittings. The fascia brackets should be set out to any pre-determined fall taking note of the position of any fittings such as outlets & angles beforehand. Fix using 5mm x 25mm stainless steel countersunk screws (dependant on substrate) Rafter brackets are also available whose centres may be governed by the roof timbers. Rise & fall brackets driven into the masonry are recommended to be at 600mm maximum centres. For direct fixing, gutters come pre-drilled at 750mm intervals and can be installed horizontally or with a specified fall (e.g. 1 in 60).Fix gutter together with M6 x 20mm screws, nuts and washers supplied. Seal joints with recommended silicone (Arbosil 1096 recommended).
- Download the Joggle Box installation guide
- and the list pricelist which illustrates the standard RAL colours available (others can be bespoke ordered - get int touch to discuss)
PLEASE NOTE:These items are 'made-to-order' and as such are non-refundable
SKU | AL54BXG_tbc |
---|---|
Leadtime | 10 Days |
Pick a Size | 125 x 100mm |
Pick a Colour | One of 26 Standard Matt RAL colours TBC - confirmed after order is placed |
Manufacturer | Rainclear |
