With a modern, minimalistic glass-to-edge design, the Rainclear Flat Glass Rooflights are an elegant and high-performance solution for externally visible installations.
Available in 14 sizes for the fixed unit and 11 sizes for electric opening, as well as custom specifications. This unit is to suit a builder’s own site formed upstand, therefore the size measurements are to suit the dimensions of the external upstand size.
Manufactured with flat sealed glass units, each rooflight features a toughened outer pane, argon filled cavity with warm-edge spacer bar and laminated Low E inner pane. They incorporate a thermally broken fully welded aluminium frame and cill detail, increasing energy efficiency and minimizing the risk of condensation. Non-fragile to CWCT Class 1 as standard ensuring the highest performance in safety is achieved.
All visible aluminium is polyester powder coated to Anthracite Grey RAL 7016 as standard or can be powder coated to a specific RAL colour if required. The flush glaze design of the rooflight ensures efficient rainwater run-off. The warm-edge spacer bar and EPDM gasket also guarantees that the double-glazed unit holds unrivalled insulation value over its full lifetime.
These Double Glazed Flat Glass Rooflights are attractive, premium quality, modern flat glass skylights with a sleek minimalist interior and exterior finish for natural light projects around your home.
Made with a flush glazed glass-to-edge design and welded double glazed frame, good thermal and sound insulation properties and factory pre-glazing for easy installation.
The Rainclear Flat Glass Rooflight is available without ventilation or electrically opening. The electric opening unit has fully concealed motors, ensuring a clean and minimalistic finish inside and out. The motor is mounted chain down, minimising water/moisture entry.
Please note: the electrically opening units come with a switch as standard, however if remote controls and rain sensors are required these will need to be purchased separately.
Features and benefits:
- Non-fragile CWCT Class 1 tested as standard ensuring the highest performance in safety is achieved
- Secure, welded glazing frame – Thermally broken
- 14 sizes available from stock
- Flush glazed glass-to-edge design
- Good thermal and sound insulation properties
- Factory pre-glazed for easy installation
- EasyClean coating available
- Stocked with Aluminium frame polyester powder coated in Anthracite Grey RAL 7016
- Can also be powder coated to any RAL colour if needed
- U-Value 1.0-1.2 W/m2K (the lower the value, the better the thermal efficiency)
- Double glazed: with toughened outer pane, argon filled cavity with warm-edge spacer bar and laminated Low E inner pane
- Flush glazed glass-to-edge design meaning efficient rainwater run off when installed at an angle between 5 and 15
- Fixed (sealed) or Electric opening option for ventilation
- 84mm black frit to ensure the view from above the rooflight is clean & minimalist
Flat Glass Rooflight suitable for Builder’s own upstand, formed on site) or supplied with our integral Timber Sloping Upstand

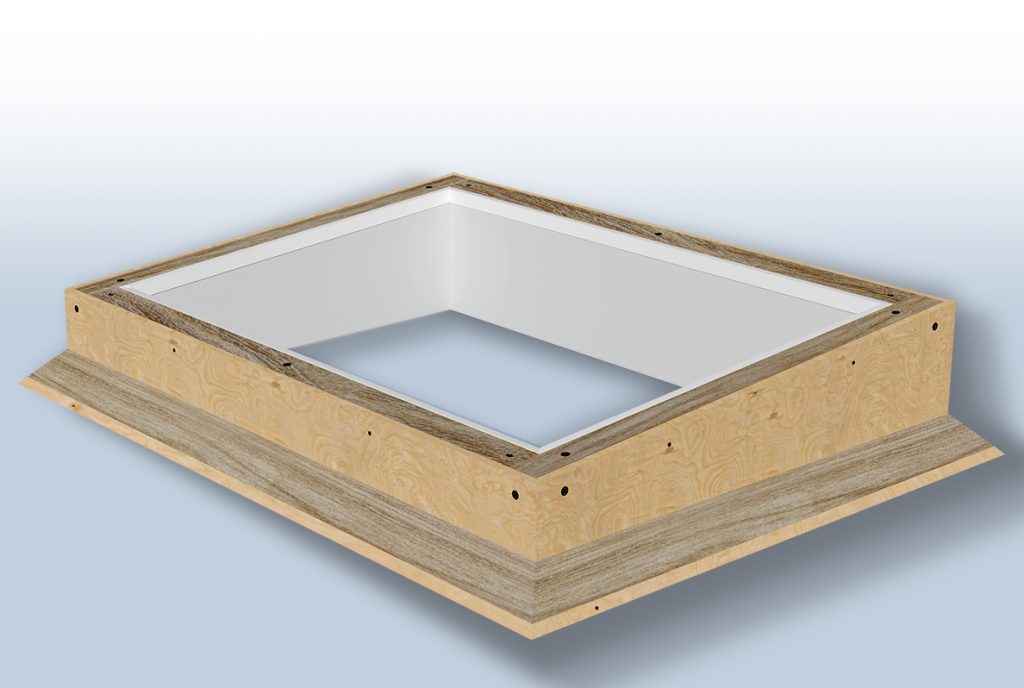

About the Timber Sloping Upstand:

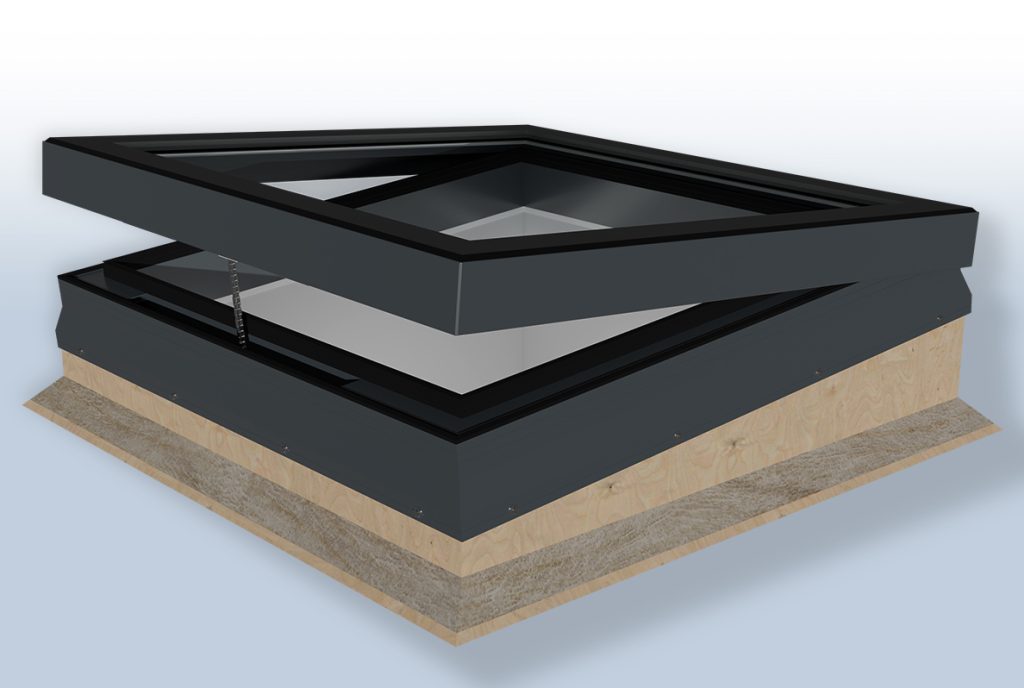

The new proprietary Timber Sloping Upstand is designed exclusively for the Rainclear Flat Glass Rooflight and is constructed with the tradesperson in mind.
With the new Part L Thermal building regulations requiring all upstands built on site, either new build or refurbishment projects meet a u-value of 0.35W/(m2·K). The new proprietary timber sloping upstand ensures that every fixed or concealed motor aluminium rooflight is fully compliant.
Constructed from thick CLS timber sandwiched together with Rockwool insulation and marine grade plywood with a fire rated plasterboard lining. It is supplied pre-assembled making it quick and easy to install, whilst guaranteed to be structurally and dimensionally sound.
Literature downloads:
The Upsands Options Data sheet:
Flat Glass Rooflight – Electric-motor-opening Data Sheet:
Flat Glass Rooflight (non-opening) Data Sheet:
O&M Manual:
Installation Guidance:

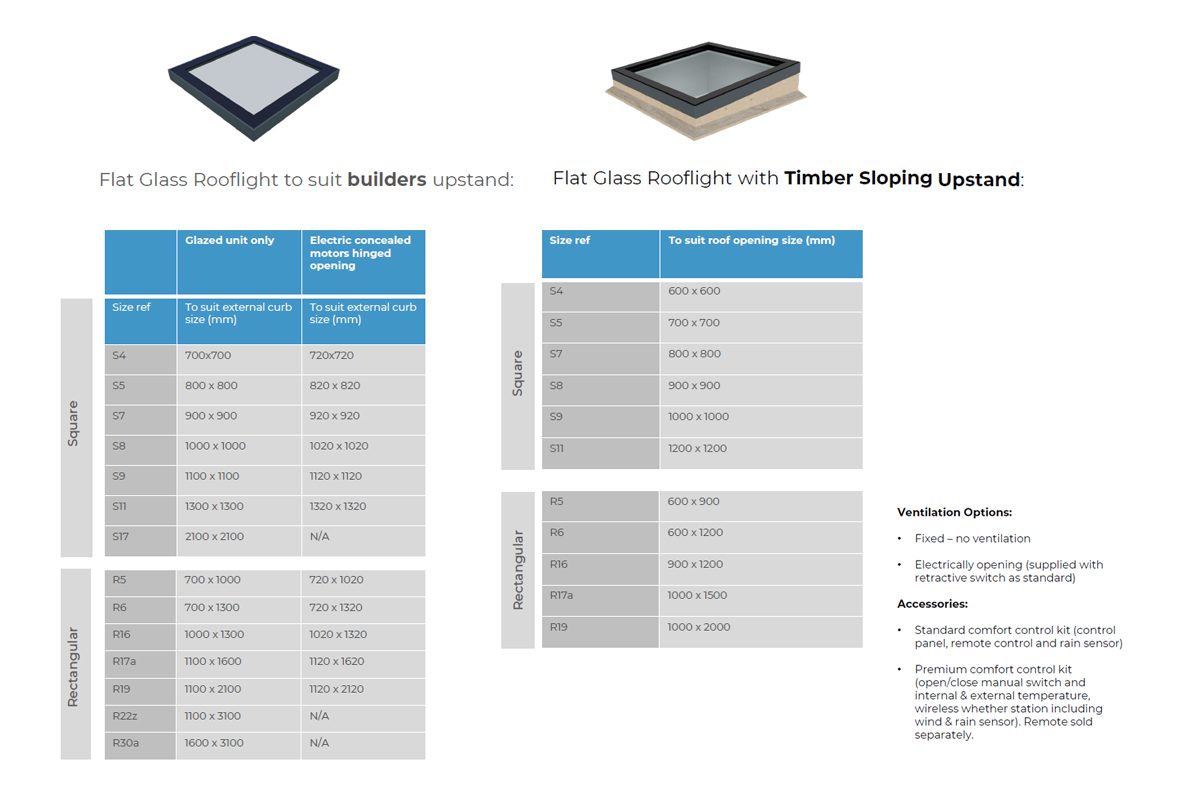

At a glance size chart:
